BP802AR 350VB-VS - Technology, efficiency, and sustainability in a single packaging solution

Specifically designed for packaging cardboard boxes intended for frozen food products. Engineered to ensure side-by-side grouping within the bundle and to optimise production efficiency while reducing operational costs.

INNOVATION
for sustainability

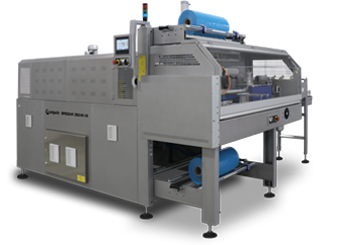

In response to the growing demands of various market sectors, SMIPACK presents its latest innovation in packaging solutions: the BP802AR 350VB-VS INOX model.

The stainless steel (AISI 304), known for its durability and corrosion resistance, makes this machine ideal for installation in production lines operating within the cold chain. This material choice not only ensures high hygiene standards but also contributes to a long machine lifespan, reducing the risk of breakdowns and enhancing reliability during operations.

SMART TECHNOLOGY
for vertical positioning

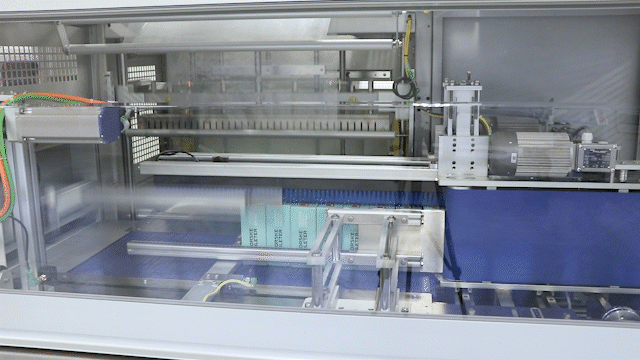

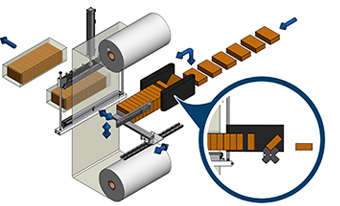

One of the distinctive features of the BP802AR 350VB-VS INOX is the incoming product-tipping system, which allows for the rotation of products without the need for additional equipment. This innovative system not only optimises the packaging process but also reduces the time and resources required, thereby increasing the overall efficiency of the production line.

ADVANCED FUNCTIONAL FEATURES

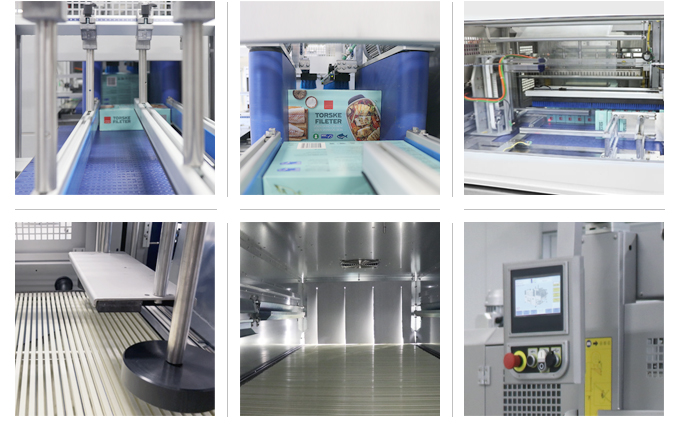

• Motorised infeed conveyor controlled by inverter, for smooth product handling.

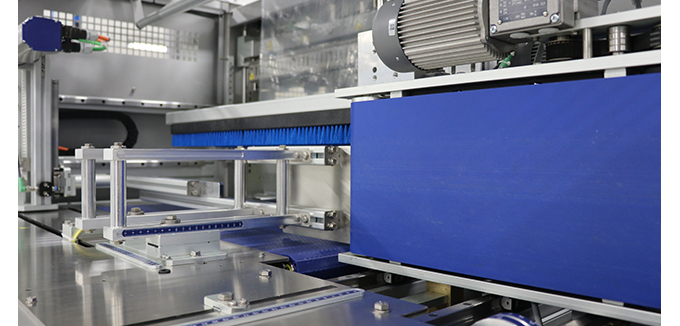

• Product-tipping unit with friction technology and adjustable vertical belts, which can be activated or deactivated depending on the format preparation requirements.
• Adjustable product grouping system, featuring a motorised lower conveyor and motorised depressor, fully electronically adjustable and controlled by two servomotors.
• VS pusher system with a motorised vertical & horizontal axis, also electronically adjustable and controlled by two servomotors.
• New format stabilisation system positioned after the sealing bar, equipped with fixed rollers and pneumatic pressure.
• Double-chamber tunnel with fibreglass rods, controlled by inverter, capable of ensuring shrink-wrapping of up to 25 bundles per minute.
• Intuitive user interface via a 7-inch touch panel, facilitating simple and comprehensive machine parameterisation.

SPEED AND EFFICIENCY
key strengths for enhancing performance

With a production speed of up to 150 boxes per minute, depending on product dimensions and required format, the BP802AR 350VB-VS INOX represents a significant advance in optimising packaging processes. By means of four servomotors, the machine ensures precise and dynamic control of the entire format shaping process, further improving operational efficiency.

BP SERIES
sustainability as a fundamental pillar

The BP series of shrink wrappers are designed to work with recycled films, thereby contributing to waste reduction and promoting sustainability. These monostructural machines optimise the packaging cycle and generate significant savings in material use and time. They also minimise environmental impact and align with regulations and trends that promote a greener future for the packaging industry.

For further information about this model and on all other SMIPACK packaging solutions, we invite you to contact our Sales Department.
