Automatic handle applicators

HA Series

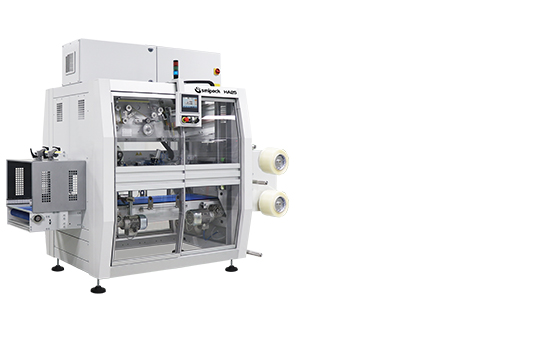

HA 25 - Automatic handle applicators

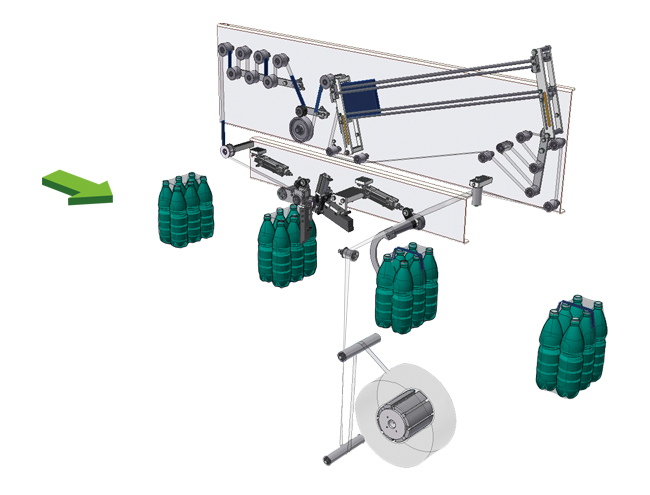

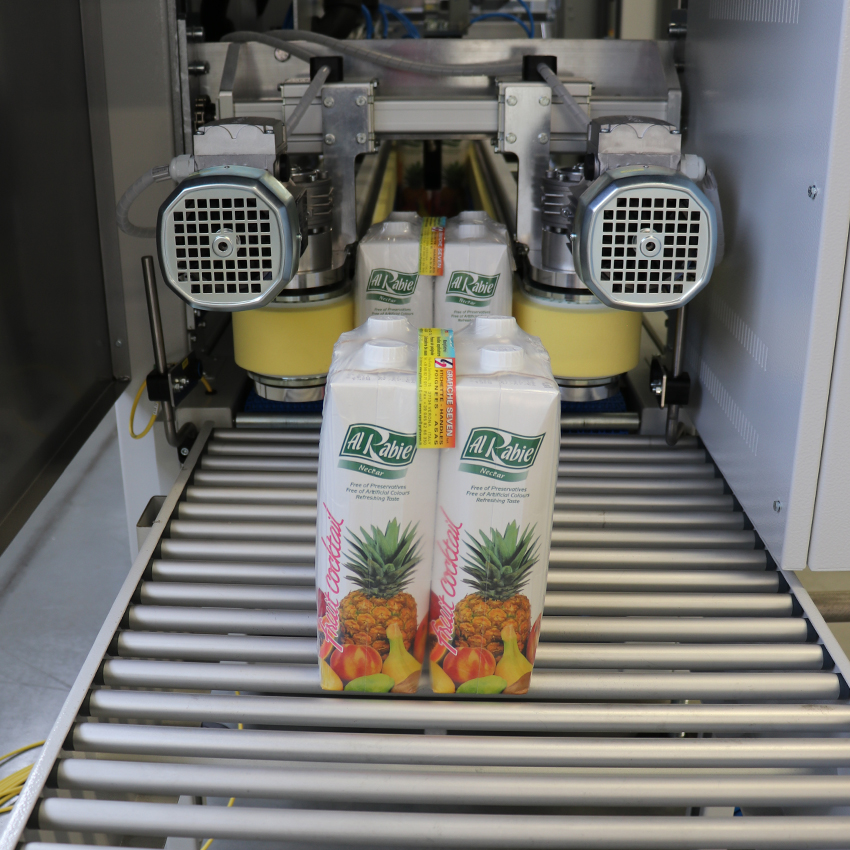

The machines from the HA series are automatic handle applicators on shrink film packs, cardboard cases, briks, paper rolls or any type of rigid packs. The HA series can apply different types of handles, together with transparent adhesive tape and made of: pre-cut cardboard labels, pre-handled adhesive tape reels, paper and polypropylene handles on reel.

The models currently available are: HA 25, HA 40, HA 60, HA 80, in which the final number indicates the maximum speed of the machine in packs per minute.


MARKET SECTORS

Beverage industry (milk, water, soft drinks, beer, wine, etc.), preserved foods (tomatoes, pickle, sauces, etc.), edible oil, flour-granules, sugar, paper, detergents.

Power supply380-415 V
3PH-N-PE
50/60 Hz
Installed power1830 W
Air pressure6 bar
Required air150 Nl/min.
Maximum output up to25 ppm**
Working board height650 - 810 mm
Machine size2593 x 1403 mm
h 2150 - 2310 mm

(**) the stated speed can change according to the product size and the pack collation.

_

  • Mono-block frame made of painted steel
  • Sliding protective doors with deceleration device

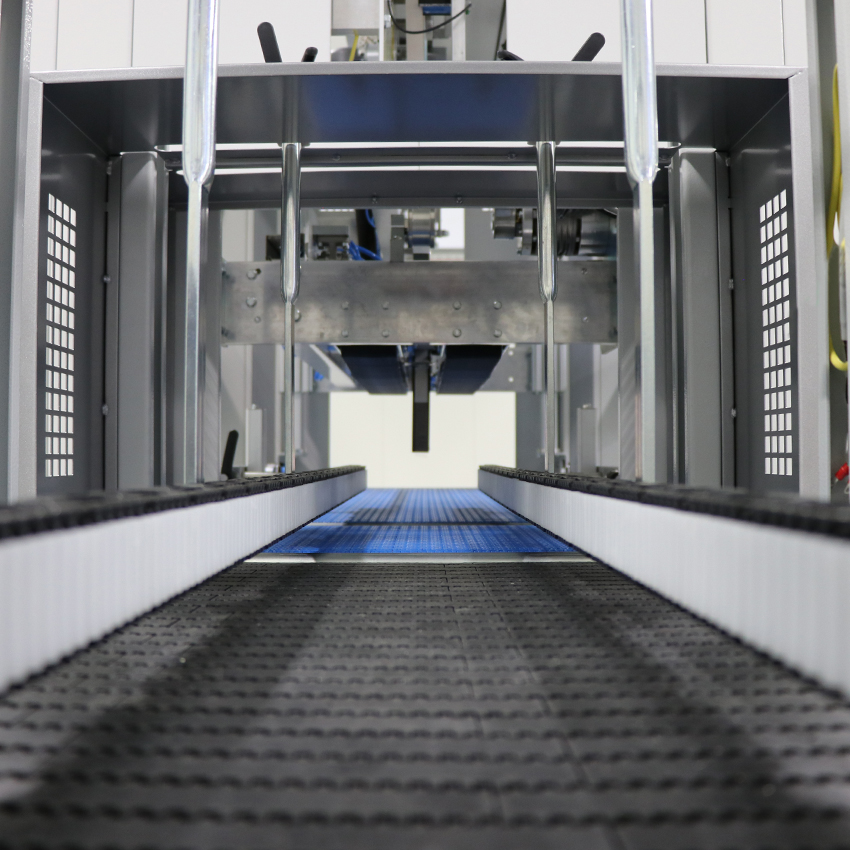

  • Rubber-coated infeed conveyor, with chains made from a thermoplastic material providing a high coefficient of friction
  • Variable speed Intralox infeed conveyor

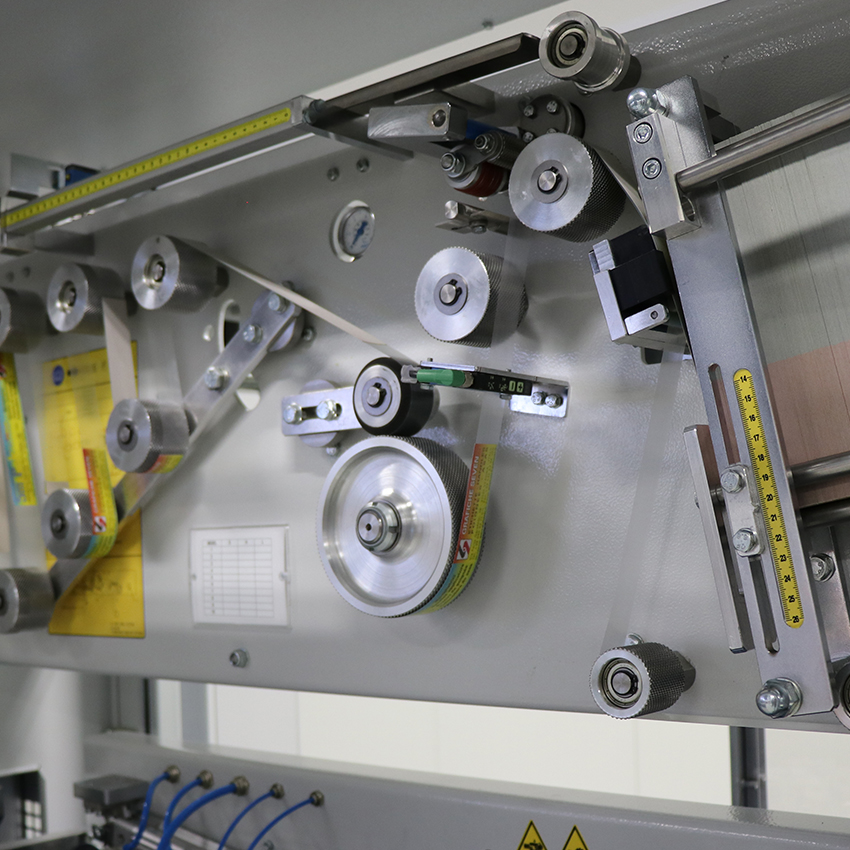

  • Cardboard labels provided with pneumatic withdraw and electronic control of the handle pitch
  • Handle central support magazine for cardboard labels, with capacity up to 5,000 pieces, positioned in the upper part of the machine and supplied with a beep when the label is missing

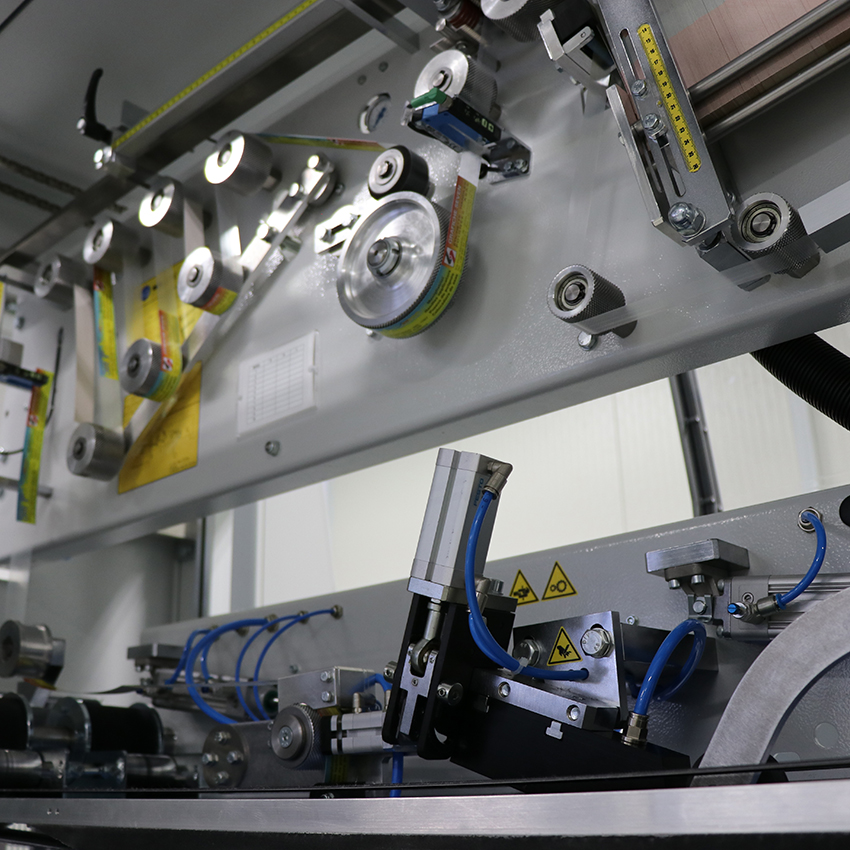

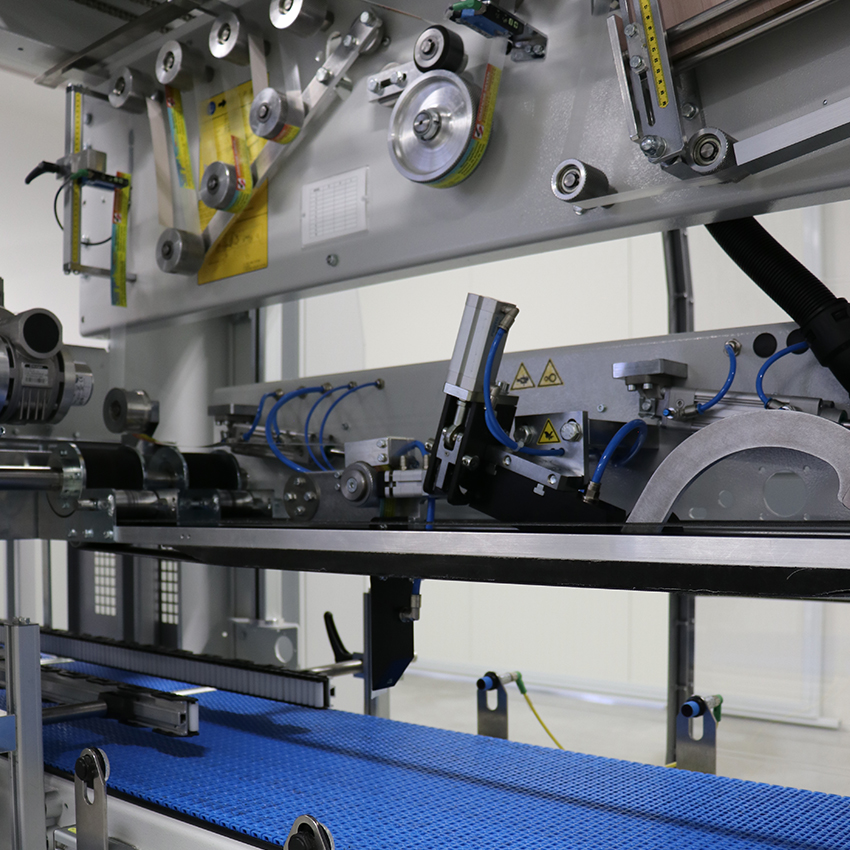

  • Pneumatic handle positioning and cut on the pack in motion, with electronic control of the handle length and supplied with a beep when the label is missing
  • Reel mandrils with pneumatic locking

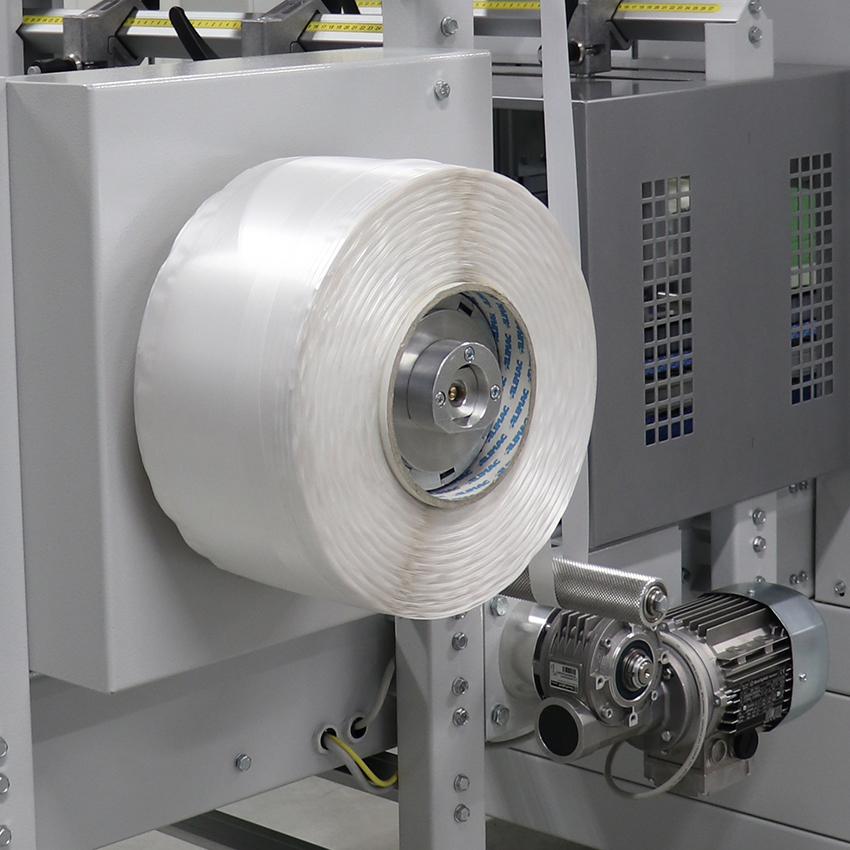

  • Motorized reel support with pneumatic locking and automatic tensioning of the adhesive tape dragging by a motorised wheel driven by Encoder and Inverter
  • FLXMOD® control system equipped with:
    • 7” full-colour touch screen display that slides along the entire length of the machine
    • PLC
    • inverter with integrated encoder reading
    • IN/OUT control modules
  • Possibility of scheduling up to 50 different work cycles
  • 4.0 industry compliant
  • Compliance with CE regulations

(**) the stated speed can change according to the product size and the pack collation.
