Semi-automatic and automatic shrink wrappers with sealing bar

BP Series

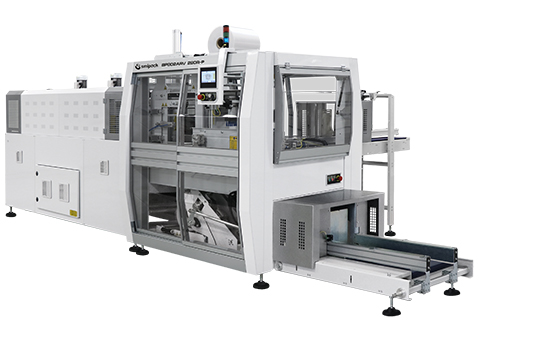

BP802ARV 280R-P - Monoblock automatic shrink wrapper with 90° infeed and sealing bar

The BP series of monobloc semi-automatic and automatic shrink wrappers with sealing bar stands out for its versatility. Depending on the model, in fact, this range of packaging machines is particularly suitable for packing a very wide range of products belonging to different market sectors in film only or pad + film.

Equipped with 90° or in-line infeed, multi-push system and cutting-edge technology, these machines are perfectly and easily integrated into shrink film packaging lines. The BP Series can reach productions up to 25 packs/minute.


MARKET SECTORS


Beverage industry (milk, water, soft drinks, beer, wine, etc.), preserved foods (tomatoes, pickle, sauces, etc.), edible oil, flour-granules, sugar, poultry farming (egg trays), printing industry, stationery, computer industry, household products, aerosols, cosmetics, pharmaceutical, electric-electronic, plastic, wood, paper, shampoo-detergents, mechanical industry, lubricants, cases & boxes, shelving, logistic, co-packers.

Power supply220 - 240 / 380 - 415 V
3PH + PE / 3PH + N + PE
50/60 Hz
Installed power33700 W
Air pressure6 Bar
Required air16,5 Nl/p*
Maximum output up to25 ppm**
Product maximum height380 mm
Sealing bar760 mm
Maximum size of film reel750 x Ø 350 mm
Working board height945 - 1105 mm
Machine size5260 x 3355 mm
h 2105 - 2265 mm
Machine net weight1735 Kg
Advised film: LDPE20 - 100 µ

(*) Normal Iiters per pack.

(**) Packs per minute. The stated speed can change according to the product size, the pack collation and the type of film used.

_

  • Automatic shrink wrappers with 90° infeed
  • Sliding protection doors with deceleration device
  • Automatic pack collation

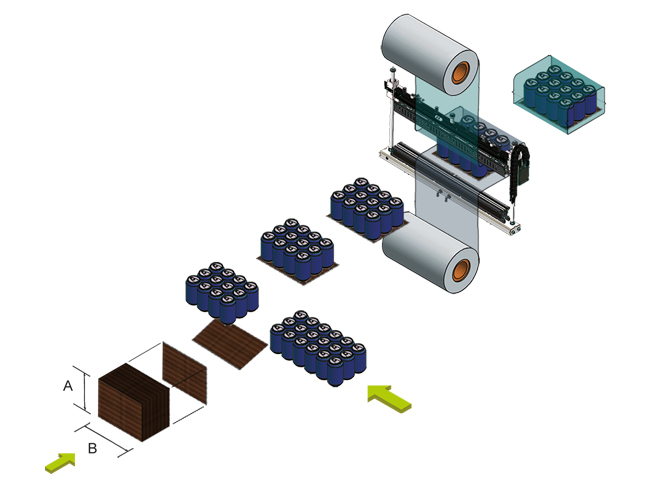

  • Pad inserting device:
    • pneumatic vertical pad taking
    • pad stock 300 pcs
    • pad dimensions min. 200x120 mm max 500x350 mm
    • pad thickness: min 2.5 mm max 3.5 mm
    • motorized pad carrying, self centering, controlled by inverter and encoder
    • mechanical pad insertion under the pack controlled by inverter and encoder, synchronized with the arrival of the products
  • Working modality: only film or pad + film
  • Double-chamber tunnel
  • 90° Infeed conveyor with adjustable speed controlled by inverter
  • Product carrying by automatic left or right conveyor
  • Available infeed lanes: 1, 2, 3
  • Product presence, outfeed accumulation, infeed and outfeed obstruction photocells
  • Infeed pneumatic press rod
  • Pneumatic depressor
  • Multi-thrust system
  • Motorized pusher controlled by inverter and encoder
  • Chain pusher located between the 90° infeed conveyor and the sealing bar controlled by inverter and encoder
  • Pneumatic products guides, synchronized with the chain pusher, to facilitate the formation and transition of the pack over the sealing bar
  • Motorized upper film unwinding controlled by inverter
  • Motorized lower film unwinding
  • Automatic, semiautomatic, pass through mode
  • Included: feet for the machine fastening, press rod to stop products, cooling fan at the tunnel outlet
  • Monoblock frame
  • Pneumatic sealing bar equipped with safety sensors
  • Pneumatic film cut by cold blade
  • Rollers are positioned on the upper and lower unwinders to make the reels easier to load
  • Metric graduation based fi lm reels centering system
  • FLXMOD® control system equipped with:
    • operator Interface 7" full-colour touch screen sliding all along the length of the machine
    • Plc
    • inverter with integrated encoder reading
    • IN/OUT control modules
  • 50 different memorisable working cycles
  • Tunnel air flow adjustable by means of independent deflectors
  • Tunnel conveyor equipped with heat-resistant glass fibre bars (SMI patent) which ensures that:
    • the conveyor stiffness grants stability to the products passing through, for a compact and well-shrunk pack
    • the conveyor can bear a product weight up to 30 kilos
    • the conveyor bars never get rusted, as it happens when using traditional metallic conveyors
    • the maintenance is easy and low-cost, thanks to the possibility of replacing just the worn out bars
  • Oven cooling system
  • Low power consumption
  • 4.0 industry compliant
  • Compliance with CE regulations
