Semi-automatic and automatic shrink wrappers with sealing bar

BP Series

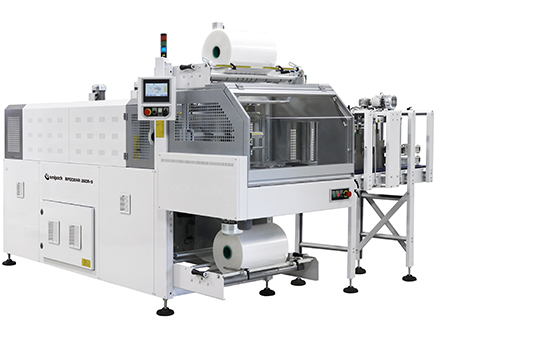

BP802AR 280R-S - Monoblock automatic shrink wrapper with 90° infeed and sealing bar

The BP series of monobloc semi-automatic and automatic shrink wrappers with sealing bar stands out for its versatility. Depending on the model, in fact, this range of packaging machines is particularly suitable for packing a very wide range of products belonging to different market sectors in film only or pad + film.

Equipped with 90° or in-line infeed, multi-push system and cutting-edge technology, these machines are perfectly and easily integrated into shrink film packaging lines. The BP Series can reach productions up to 25 packs/minute.


MARKET SECTORS


Beverage industry (milk, water, soft drinks, beer, wine, etc.), preserved foods (tomatoes, pickle, sauces, etc.), edible oil, flour-granules, sugar, poultry farming (egg trays), printing industry, stationery, computer industry, household products, aerosols, cosmetics, pharmaceutical, electric-electronic, plastic, wood, paper, shampoo-detergents, mechanical industry, lubricants, cases & boxes, shelving, logistic, co-packers.

Power supply220 - 240 / 380 - 415 V
3PH + PE / 3PH + N + PE
50/60 Hz
Installed power27080 W
Air pressure6 Bar
Required air12 Nl/p*
Maximum output up to20 ppm**
Product maximum height380 mm
Sealing bar760 mm
Maximum size of film reel750 x Ø 350 mm
Working board height945 - 1105 mm
Machine size3675 x 3310 mm
h 2105 - 2265 mm
Machine net weight1045 Kg
Advised film: LDPE20 - 100 µ

(*) Normal Iiters per pack.

(**) Packs per minute. The stated speed can change according to the product size, the pack collation and the type of film used.

_

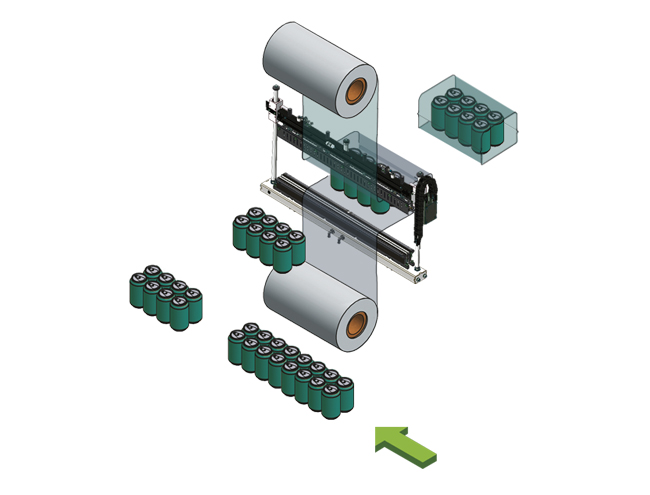

  • Automatic shrink wrappers with 90° infeed
  • Automatic pack collation and sorter at the machine infeed
  • Double-chamber tunnel
  • 90° Infeed conveyor with adjustable speed controlled by inverter
  • Product carrying by automatic left or right conveyor
  • Available infeed lanes: 1, 2, 3
  • Product presence, infeed obstruction photocells
  • Infeed pneumatic press rod
  • Pneumatic depressor
  • Motorized pusher controlled by inverter and encoder
  • Motorized upper film unwinding controlled by inverter
  • Motorized lower film unwinding
  • Tunnel belt with adjustable speed controlled by inverter
  • Automatic, semiautomatic, pass through mode
  • Included: feet for the machine fastening and wheels for the machine moving operations, press rod to stop products, cooling fan at the tunnel outlet
  • Monoblock frame
  • Pneumatic sealing bar equipped with safety sensors
  • Pneumatic film cut by cold blade
  • Rollers positioned on the upper and lower unwinders to make easier the reels loading
  • Metric graduation based fi lm reels centering system
  • FLXMOD® control system equipped with:
    • operator Interface 7" full-colour touch screen
    • Plc
    • inverter with integrated encoder reading
    • IN/OUT control modules
  • 50 different memorisable working cycles
  • Tunnel air fl ow adjustable by means of independent defl ectors
  • Tunnel conveyor equipped with heat-resistant glass fi bre bars (SMI patent) and with an additional central chain which ensures that:
    • the conveyor stiffness grants stability to the products passing through, for a compact and well-shrunk pack
    • the conveyor can bear a product weight up to 30 kilos
    • the conveyor bars never get rusted, as it happens when using traditional metallic conveyors
    • the maintenance is easy and low-cost, thanks to the possibility of replacing just the worn out bars
  • Oven cooling system
  • Low power consumption
  • 4.0 industry compliant
  • Compliance with CE regulations
