Semi-automatic and automatic L-sealers with shrink tunnel

FP Series

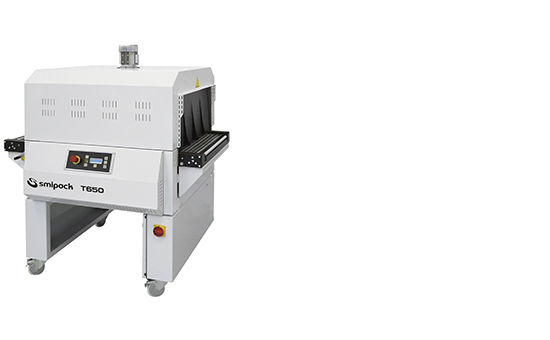

T650 - Tunnel for modular L-sealing machines

The semi-automatic and automatic “Full Electric” packers with L-sealing system from the FP series are characterized by great quality/price ratio and modularity. All models of this range can indeed be supplied with or without shrink tunnel.

The INOX version of these machines is ideal for meeting the needs of the food industry; it features a stainless steel frame (AISI 304) and is equipped with a conveyor belt in compliance with FDA, UE and USDA regulations for contact with food.

Compared to the traditional L-sealers, the FP series provides higher outputs as well as the possibility of using Polyethylene film, besides the traditional shrink films, and includes different models for outputs ranging up to 3600 packs/hour.


MARKET SECTORS

Bakery, confectionery, dairy products, fruit & vegetables, fish, meat, eggs, printing industry, stationery, computer industry, laundry, household products, toys, cosmetics, pharmaceutical, electric-electronic, plastic, wood, paper, detergents, mechanical industry, lubricants, cases & boxes, shelving, logistic, co-packers.

Power supply220 - 240 / 380 – 415 V
3PH + PE / 3PH + N + PE
50/60 Hz
Installed power9500 W
Maximum pack height300 mm
Speed of conveyors1,5 - 9 m/min
Machine size1380 x 1045 mm
h 1565 mm
Machine net weight241 Kg
Usable Films: Pvc, Polyolefins and Polyethyleneup to 50 µ
  • Single-chamber shrink tunnel
  • FLXMOD® control system equipped with:
    • Alphanumeric LCD control panel provided with electronic board
    • Modular power section, separated from the control panel and equipped with:
      • inverter to control the speed of the oven belt
      • solid state relays to control the resistance module
    • This system allows a simple and precise control of all the machine operations, such as:
      • adjustment of the tunnel conveyor speed
      • adjustment of the tunnel shrinking temperature
      • possibility of scheduling up to 10 different work cycles
  • Tunnel conveyor with turning or fixed silicone-coated rollers
  • Cooling system
  • Tunnel air flow adjustable by flaps
  • Reduced power consumption
  • Compliance with CE regulations
