Semi-automatic and automatic L-sealers with shrink tunnel

FP Series

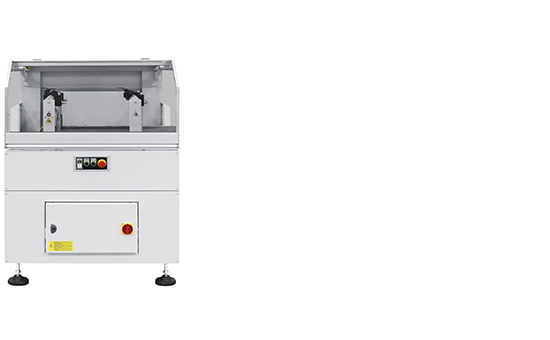

GHL 400 - Conveyor with product-separating device

The semi-automatic and automatic “Full Electric” packers with L-sealing system from the FP series are characterized by great quality/price ratio and modularity. All models of this range can indeed be supplied with or without shrink tunnel.

The INOX version of these machines is ideal for meeting the needs of the food industry; it features a stainless steel frame (AISI 304) and is equipped with a conveyor belt in compliance with FDA, UE and USDA regulations for contact with food.

Compared to the traditional L-sealers, the FP series provides higher outputs as well as the possibility of using Polyethylene film, besides the traditional shrink films, and includes different models for outputs ranging up to 3600 packs/hour.


MARKET SECTORS

Bakery, confectionery, dairy products, fruit & vegetables, fish, meat, eggs, printing industry, stationery, computer industry, laundry, household products, toys, cosmetics, pharmaceutical, electric-electronic, plastic, wood, paper, detergents, mechanical industry, lubricants, cases & boxes, shelving, logistic, co-packers.

Power supply220 - 240 V
1PH + N + PE
50/60 Hz
Installed power370 W
Compressed air pressure6 bar
Compressed air consumption0,37 Nl/p
Speed of conveyors10 - 30 m/min
Machine size1210 x 965 mm
h 1345 - 1505 mm
Machine net weight195 Kg
  • Separator device which represents the ideal solution for the alignment of flanked products, grouped or stacked before their entry inside the tunnels
