Semi-automatic and automatic L-sealers with shrink tunnel

FP Series

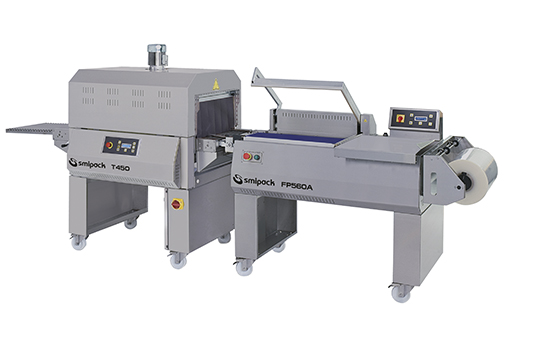

FP560A INOX - Semi-automatic L-sealer in stainless steel

The semi-automatic and automatic “Full Electric” packers with L-sealing system from the FP series are characterized by great quality/price ratio and modularity. All models of this range can indeed be supplied with or without shrink tunnel.

The INOX version of these machines is ideal for meeting the needs of the food industry; it features a stainless steel frame (AISI 304) and is equipped with a conveyor belt in compliance with FDA, UE and USDA regulations for contact with food.

Compared to the traditional L-sealers, the FP series provides higher outputs as well as the possibility of using Polyethylene film, besides the traditional shrink films, and includes different models for outputs ranging up to 3600 packs/hour.


MARKET SECTORS

Bakery, confectionery, dairy products, fruit & vegetables, fish, meat, eggs, printing industry, stationery, computer industry, laundry, household products, toys, cosmetics, pharmaceutical, electric-electronic, plastic, wood, paper, detergents, mechanical industry, lubricants, cases & boxes, shelving, logistic, co-packers.

Power supply220 - 240 V
1PH + N + PE
50/60 Hz
Installed power2500 W
Sealing bar560 x 430 mm
Maximum pack height230 mm
Speed of conveyors19 m/min
Output up to1500 pph **
Maximum size of film reel600 - ø 300 mm
Machine size2010 x 790 mm
h 1050 mm
Machine net weight145 Kg
Usable Films: Pvc, Polyolefins and Polyethyleneup to 50 µ

(**) Packs per minute. The stated speed can change according to the product size, the pack collation and the type of film used.

_

  • Machine manufactured in stainless steel AISI 304
  • Alimentary belts with FDA, UE, USDA conformities
  • Continuous cycle sealing
  • Pack deviation device
  • PTFE-coated sealing blade
  • Closed-circuit liquid cooling of the sealing bars
  • Viewer of the coolant level
  • Working height of the sealer and of the tunnel adjustable by means of an external crank
  • Mobile product-holding plate, loose from the film reel support to allow a better adjustment of the film to the pack size
  • Emergency button
  • Automatic pack discharge by means of a motorized conveyor
  • Flextron® control system equipped with:
    • alphanumeric LCD control panel provided with a 16-bit microprocessor card and solid state relays
    • modular power section, separated from the control panel and characterized by:
      • longer-lasting solid state relays providing easier maintenance
      • in case of failure, possibility of replacing just the damaged module, without losing the data stored in the memory
    This system allows a simple and precise control of all the machine operations, such as:
    • machine status
    • number of packs produced by an electronic pack counter
    • real-time production
    • adjustment of the sealing temperature
    • pack discharge speed
    • automatic hood closing and re-opening, motorized and managed by Inverter
    • delay in the opening of the sealing arm
    • sealing arm safety device
    • possibility of scheduling up to 10 different work cycles, thus resulting in increased productivity and simplified use
    • troubleshooting
  • Reduced power consumption
  • Compliance with CE regulations
