Semi-automatic and automatic L-sealers with shrink tunnel

FP Series

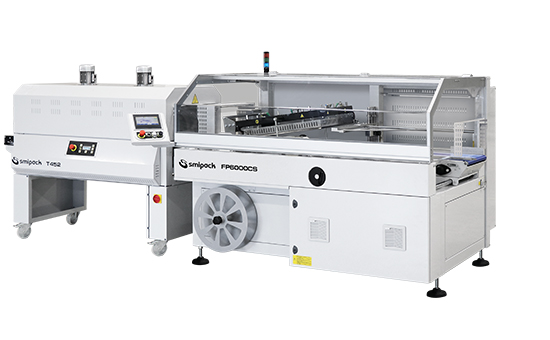

FP6000CS - Automatic L-sealer

The semi-automatic and automatic “Full Electric” packers with L-sealing system from the FP series are characterized by great quality/price ratio and modularity. All models of this range can indeed be supplied with or without shrink tunnel.

The INOX version of these machines is ideal for meeting the needs of the food industry; it features a stainless steel frame (AISI 304) and is equipped with a conveyor belt in compliance with FDA, UE and USDA regulations for contact with food.

Compared to the traditional L-sealers, the FP series provides higher outputs as well as the possibility of using Polyethylene film, besides the traditional shrink films, and includes different models for outputs ranging up to 3600 packs/hour.


MARKET SECTORS

Bakery, confectionery, dairy products, fruit & vegetables, fish, meat, eggs, printing industry, stationery, computer industry, laundry, household products, toys, cosmetics, pharmaceutical, electric-electronic, plastic, wood, paper, detergents, mechanical industry, lubricants, cases & boxes, shelving, logistic, co-packers.

Power supply220 - 240 / 380 - 415 V
3PH + PE / 3PH + N + PE
50/60 Hz
Installed power3350 W
Sealing bar640 x 510 mm
Maximum pack height200 mm
Speed of conveyors10 - 30 m/min
Output up to3600 pph **
Maximum size of film reel600 - ø 350 mm
Machine size2175 x 1875 mm
h 1525-1665 mm
Machine net weight660 Kg
Usable Films: Polyolefin and Polyethylene (Polyethylene from 15 to 60 my with option sealing bar for Polyethylene)up to 30 µ

(**) Packs per hour. The stated speed can change according to the product size, the pack collation and the type of film used.

_

  • FULL ELECTRIC 4.0 L-sealer
  • Motorized sealing bar controlled by inverter and encoder
  • Motorized conveyor closing system controlled by inverter included
  • Motorized center seal system
  • PTFE-coated sealing blade
  • Emergency button
  • Safety device
  • Continuous cycle sealing
  • FLXMOD® control system equipped with:
    • 7” full-colour touch-screen display with PLC user-friendly
    • Modular power section made up by:
      • inverter for all motors
      • IN/OUT (inlet/outlet) digital and analog control modules
    • This system allows a simple and precise control of all the machine operations, such as:
      • possibility of storing up to 50 different operation programs
      • automatic control of the sealing bar height
      • double adjustment of the sealing blade temperature, both lengthways and broadways
      • sealing time adjustment
      • possibility of packing single packs or multipacks
      • speed of conveyorselectronically adjustable from the control panel
      • process statistics
  • Reduced power consumption
  • Compliance with CE regulations
