Automatic flow pack machines

FW Series

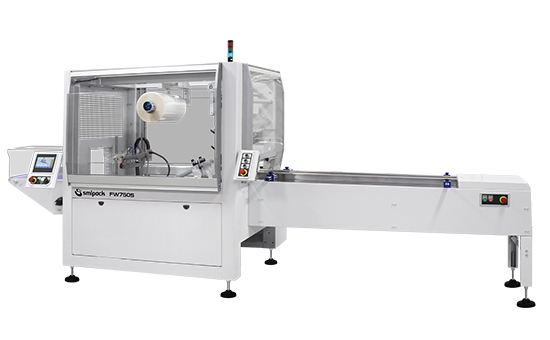

FW750S - Flow pack machine with intermittent sealing and upper film reel

The new FW series of automatic packaging machines with flow pack system, designed according to Industry 4.0 and IoT (Internet of Things) technological platforms, is the family of machines that completes the SMIPACK range. This low speed version is equipped with a transversal sealing bar controlled by an intermittent motion servomotor. It is available in 4 models (two with upper reel and two with lower reel) and packs different types of items (even large-sized) in packages made up of simple or coupled flexible material with a maximum output of 40 products/minute. The film sealing and folding systems, combined with the dynamic and adjustable conformer, make these packaging machines the ideal solution for packing a wide range of long-life products (through injection of gas or nebulization of preservative flavorings) with different dimensions and heights, coming from several sectors.

Power supply220 - 240 / 380 - 415 V
3PH + PE / 3PH + N + PE
50/60 Hz
Installed power5300 W
Compressed air pressure6 bar
Sealing bar350 mm
Maximum product height200 mm
Speed up to 40 ppm*
Maximum size of film reel750 - ø 350 mm
Machine size4300 x 1580 mm
h 2155 - 2255 mm
Machine net weight780 kg

(*) Products per minute. The stated speed can change according to the product size, the pack collation and the type of film used.

_

  • High reel flow pack machine
  • Intermittent cross sealing system
  • Sliding surfaces of the products in AISI304
  • 1500 mm - 59.06" infeed conveyor with adjustable guides
  • Easily removable interlocking vanes
  • Longitudinal sealing consisting of 3 pairs of drive wheels, the first pair pulls the film, the second does the sealing and the third folds the film
  • Pneumatic opening of the longitudinal sealing wheels
  • Motorized high reel holder
  • Pneumatic expansion reel holder shaft
  • Motorized product outfeed conveyor
  • Outfeed conveyor adjustable in height by handwheel
  • Cross sealing with bar 350 mm – 13.78”width
  • Standard dynamic film conformer with position indicator with numerical display
  • Variation of the sealing bar height position by means of a motor, storable by program (center seal)
  • Drawers to collect product waste, under the entire length of the infeed conveyor and part of the machine
  • Printed film centering device, no product - no bag, and end of film reel sensor included
  • Motors configuration controlled by inverters: reel holder with asynchronous motor
  • Motors configuration controlled by drivers: infeed conveyor/cross sealer/ longitudinal sealer/outfeed conveyor with indipendent brushless
  • Machine stop in phase
  • FLXMOD® control system equipped with:
    • operator Interface with Panel PC and 7” full-colour touch screen display with PLC user-friendly
    • IN/OUT control modules for digital, analog inputs/outputs and thermocouple-reading control.
  • This system is able to check all operations, simply and precisely, such as:
    • electronic checking of the film tension
    • adjustment of product height storable by program
    • three sealing temperature adjustments, one on the longitudinal sealer, one on the upper cross sealer and one on the lower
      cross sealere
    • electronically controlled conveyor belt speed
    • process statistics:
      • pack counter
      • instantaneous production
      • machine efficiency
  • Possibility of scheduling up to 50 different work cycles
  • Emergency button
  • Reduced power consumption
  • Compliance with CE regulations
