Continuous automatic sealers with shrink tunnel

HS Series

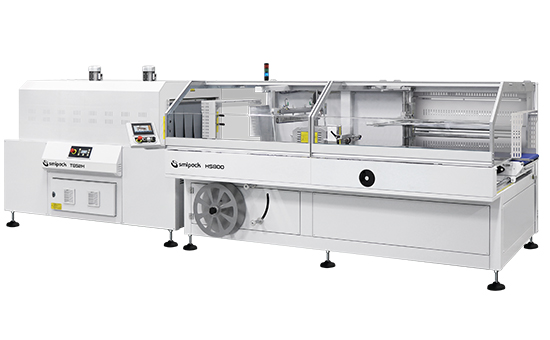

HS800 - Continuous automatic side sealers with intermittent cycle

The “Full Electric” automatic packers with continuous sealing system from the HS series, designed according to the most advanced concepts of Industry 4.0, are characterized by a great quality/price ratio and modularity. In fact, all the models of this range can be supplied with or without shrink tunnel.

The HS series with continuous sealing and intermittent or box motion cycle can handle Polyolefin and Polyethylene, Polypropylene centerfolded or flat film with film folder PX, and is suited to meet outputs of up to 7200 packs/hour and 9000 packs/hour with customized solutions.


MARKET SECTORS

Bakery, confectionery, dairy products, fruit & vegetables, fish, meat, eggs, printing industry, stationery, computer industry, laundry, household products, toys, cosmetics, pharmaceutical, electric-electronic, plastic, wood, paper, detergents, mechanical industry, lubricants, cases & boxes, shelving, logistic, co-packers.

Power supply220 - 240 / 380 - 415 V
3PH + PE / 3PH + N + PE
50/60 Hz
Installed power3850 W
Sealing bar820 mm
Maximum pack height350 mm
Speed of conveyors11 - 45 m/min
Speed up to 3900 pph **
Maximum size of film reel950 - ø 350 mm
Machine size3070 x 2425 mm
h 1605 - 1765 mm
Machine net weight1115 Kg
Usable Films: Polyolefin and Polyethylene (Polyethylene from 15 to 80 my with option cross bar for Polyethylene)up to 30 µ

_

  • FULL ELECTRIC 4.0 continuous packer with 3 belts
  • Intermittent working cycle
  • Motorized cross sealing bar controlled by inverter and encoder with PTFE-coated sealing blade

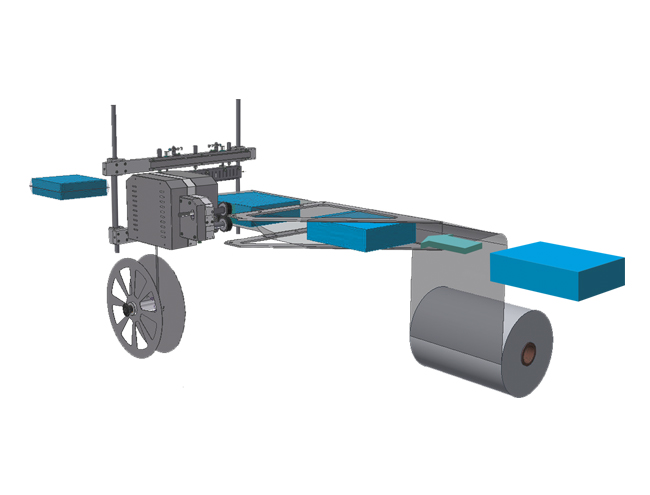

  • Side sealing system by friction with hot blade
  • FLXMOD® control system equipped with:
    • Operator Interface with Panel PC and 7” full-colour touch screen display with PLC user-friendly
    • Power and control section consisting of:
      • inverters for all motors
      • IN/OUT control modules with 16 digital inputs/outputs
      • analog inputs control modules
      • thermocouple-reading control modules
    • This system is able to check all operations, simply and precisely, such as:
      • electronic checking of the film tension
      • adjustment of cross bar height
      • dual sealing temperature adjustment, both for the longitudinal and the cross sealer
      • sealing time adjustment
      • possibility of packaging individual packs or groups of products
      • electronically controlled conveyor belt speed
      • process statistics
  • Possibility of remote control
  • Motorized center seal system
  • 50 storable programs
  • Infeed conveyor released from the square to facilitate the film insertion
  • Systems for the leading guide and the decrease of the film tension placed before the cross bar and the longitudinal
  • Lateral motion device of the longitudinal sealer
  • Emergency button
  • Reduced power consumption
  • Compliance with CE regulations
