Automatic overlap shrink wrappers

XP Series

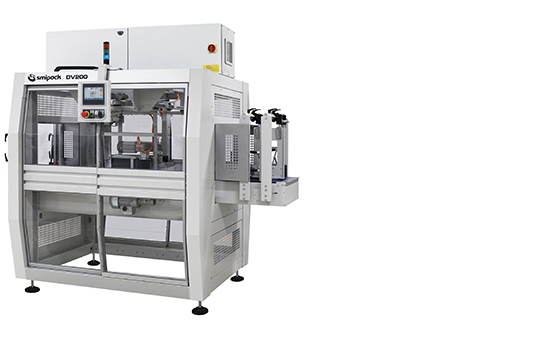

DV200 - Divider of products for machines with in-line infeed

The XP series from automatic monobloc overlap shrink wrappers offers many advantages compared to other packaging systems, such as the use of a single film reel compared to the sealing bar system.

These models are also suitable for centering the printed film and enable to significantly increase the output. The XP series is particularly suitable to pack glass and PET bottles, cans, boxes, trays, jars, etc. in film only, pad + film or tray + film. The XP Series can reach productions up to 25 packs/minute.


MARKET SECTORS


Beverage industry (milk, water, soft drinks, beer, wine, etc.), preserved foods (tomatoes, pickle, sauces, etc.), edible oil, flour-granules, sugar, poultry farming (egg trays), printing industry, stationery, computer industry, household products, aerosols, cosmetics, pharmaceutical, electric-electronic, plastic, wood, paper, shampoo-detergents, mechanical industry, lubricants, cases & boxes, shelving, logistic, co-packers.

Power supply220 - 240 V
1PH + N + PE
50/60 Hz
Installed power910 W
Speed up to 200 p/min.**
Product maximum height380 mm
Working board height1045 - 1185 mm
Machine size3940 x 1575 mm
h 2250 - 2410 mm
Machine net weight740 Kg

(**) Products per minute.

  • Maximum capacity up to 200 products per minute
  • Electromechanical system for division of products on multiple lanes, motorized and controlled by Inverter and Encoder
  • FLXMOD® control system equipped with:
    • independent operator interface with 7” full-color touch-screen display, interfaced with the panel of the shrinkwrapper
    • PLC
    • inverter with integrated encoder reading
    • IN/OUT control modules
  • Control sensor of the infeed flow in order to ensure a regular pressure at the entrance of the product
  • Accumulation sensors at the outfeed of the divider in order to control the feeding of the product and its presence on each lane
  • Up to 50 different working cycles

(**) Packs per minute. The stated speed can change according to the product size, the pack collation and the type of film used.
