Automatic overlap shrink wrappers

XP Series

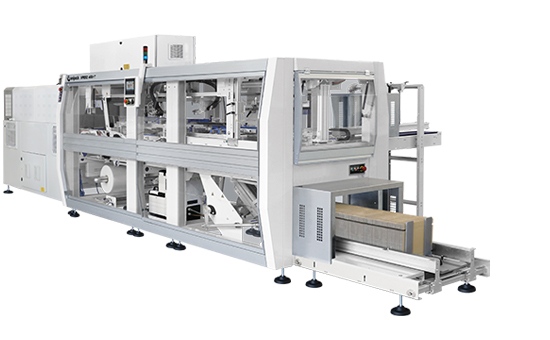

XP650 ARX-T - 90° infeed automatic overlap shrink wrappers film + tray

The XP series from automatic monobloc overlap shrink wrappers offers many advantages compared to other packaging systems, such as the use of a single film reel compared to the sealing bar system.

These models are also suitable for centering the printed film and enable to significantly increase the output. The XP series is particularly suitable to pack glass and PET bottles, cans, boxes, trays, jars, etc. in film only, pad + film or tray + film. The XP Series can reach productions up to 25 packs/minute.


MARKET SECTORS


Beverage industry (milk, water, soft drinks, beer, wine, etc.), preserved foods (tomatoes, pickle, sauces, etc.), edible oil, flour-granules, sugar, poultry farming (egg trays), printing industry, stationery, computer industry, household products, aerosols, cosmetics, pharmaceutical, electric-electronic, plastic, wood, paper, shampoo-detergents, mechanical industry, lubricants, cases & boxes, shelving, logistic, co-packers.

Power supply220 - 240 / 380 - 415 V
3PH + PE / 3PH + N + PE
50/60 Hz
Installed power38500 W
Air pressure6 Bar
Required air14,5 Nl/p*
Maximum output up to25 ppm**
Product maximum height380 mm
Maximum size of film reel650 x Ø 400 mm
Working board height1045 - 1205 mm
Machine size7800 x 2830 mm
h 2150 - 2310 mm
Machine net weight2640 Kg
Advised film: LDPE20 -100 µ

(*) Normal Iiters per pack.

(**) Packs per minute. The stated speed can change according to the product size, the pack collation and the type of film used.

_

  • Automatic overlap shrink wrapper with 90° infeed conveyor
  • Sliding protection doors with deceleration device
  • Automatic pack collation
  • Tray inserting device:
    • picking by pneumatic picker
    • cardboards stock 300 pcs
    • cardboards dimensions min 200x120 mm max 600x400 mm
    • tray dimensions min 150x60 mm max 500x320 mm
    • dimensions of tray flaps min 30 mm max 80 mm
    • cardboard thickness min 2,5 mm max 3,5 mm
    • motorized cardboard carrying and insertion, self centering, controlled by inverter and encoder, electronically synchronized with the
      arrival of the products
    • hot melt glue application system

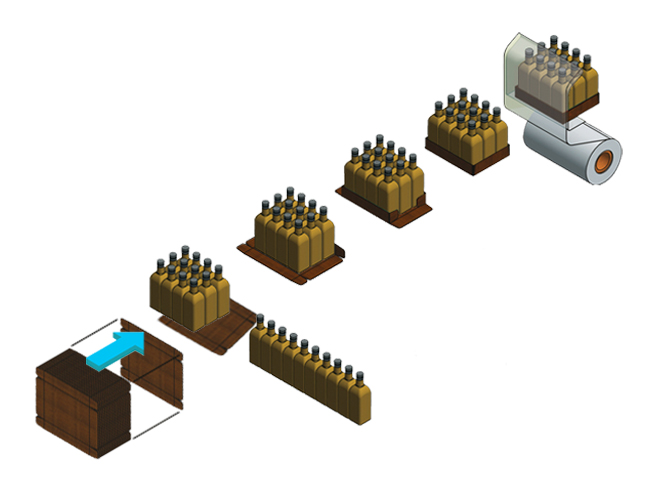

  • Working modality: only film or film + tray
  • Double-chamber tunnel
  • 90° infeed conveyor with adjustable speed controlled by inverter
  • Machine available with left or right operator side
  • Infeed rows: 1, 2, 3
  • Photocells for product presence, infeed obstruction, separation, film wrapping, tunnel outlet obstruction and outlet accumulation included
  • Adjustable infeed guides
  • Motorized pusher controlled by brushless servomotor
  • Chain separator controlled by inverter and encoder
  • Motorized lower film unwinding controlled by inverter and potentiometer
  • Reel chuck with pneumatic locking
  • Manual sealer of the reels
  • Pneumatic film cut by cold blade
  • Intermittent cutting cycle
  • Film unwinding controlled by brushless servomotor
  • Pack wrapping controlled by brushless servomotor
  • Autoconfiguration of separation and wrapping of the pack
  • Linking conveyor with adjustable speed controlled by inverter and encoder
  • Included: feet for the machine fastening, press rod to stop products, cooling fan at the tunnel outlet
  • Automatic, semiautomatic, pass through mode
  • Metric graduation based film reels centering system
  • Tunnel belt with adjustable speed controlled by inverter
  • Tunnel air flow adjustable by means of independent deflectors
  • Tunnel conveyor with glass fibre bars (SMI patent in use concession)
  • Oven cooling system
  • FLXMOD® control system equipped with:
    • operator interface with 7” full-color touch-screen display
    • PLC
    • inverter with integrated encoder reading
    • IN/OUT control modules
  • Storing of 50 different working cycles
  • 4.0 industry compliant
  • Compliance with CE regulations

(**) Packs per minute. The stated speed can change according to the product size, the pack collation and the type of film used.
