L-seal hood packers

S Series

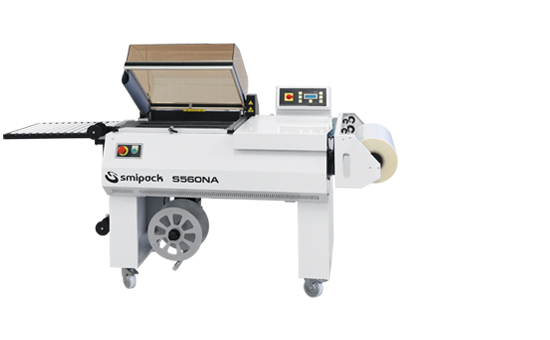

S560NA - L-seal hood packer

The S series of L-seal hood packers with sealing and shrinking system in a single operation represents the “historical product” of SMIPACK, that is mainly used in industrial sectors, thanks to its capability of reaching quite high production speeds.

The S series of L-sealing hood packers includes four models for outputs ranging up to 900 packs/hour.


MARKET SECTORS

Bakery, confectionery, dairy products, fruit & vegetables, fish, meat, eggs, printing industry, stationery, computer industry, laundry, household products, toys, cosmetics, pharmaceutical, electric-electronic, plastic, wood, paper, detergents, mechanical industry, lubricants, cases & boxes, shelving, logistic, co-packers.

Power supply220 - 240 V
1PH - N - PE
50/60 Hz
Installed power3740 W
Sealing bar560 x 430 mm
Maximum pack height260 mm
Average output up to900 pph **
Maximum size of film reel600 - ø 300 mm
Machine size2010 x 790 mm
h 1090 mm
Machine net weight153 Kg
Usable Films: Pvc, Polyolefinsup to 30 µ

(**) Packs per hour. The stated speed can change according to the product size, the pack collation and the type of film used.

_

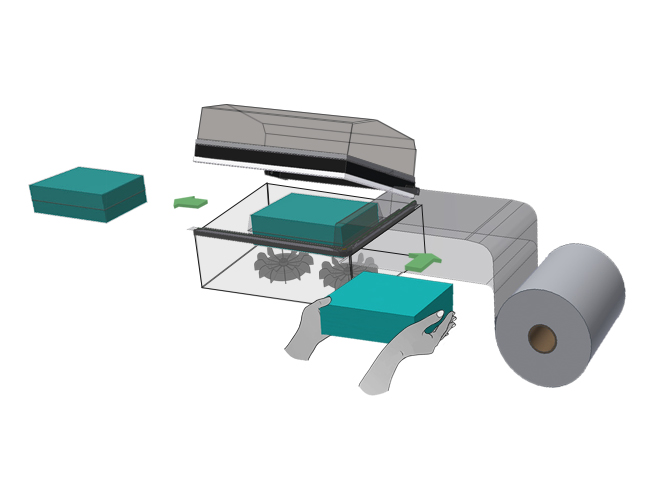

  • Sealing and shrinking in one operation
  • PTFE-coated sealing blade
  • Air cooling of the machine frame
  • Closed-circuit liquid cooling of the sealing bars
  • Viewer of the coolant level
  • Quick adjustment of the packaging plate height by means of an external crank
  • Mobile product-holding plate, loose from the film reel support to allow a better adjustment of the film to the pack size
  • Emergency button
  • Automatic hood release
  • Automatic pack discharge by means of a motorized conveyor
  • Flextron® control system equipped with:
    1. alphanumeric LCD control panel provided with a 16-bit microprocessor card and solid state relays, that allow a simple and precise control of all the machine operations, such as:
      • machine status
      • number of packs produced by an electronic pack counter
      • real-time production
      • adjustment of the sealing temperature
      • adjustment of the hood opening delay
      • adjustment of the shrinking delay
      • adjustment of the shrinking time
      • adjustment of the shrinking chamber temperature
      • pack discharge speed
      • automatic hood closing and re-opening, motorized and managed by Inverter
      • possibility of scheduling up to 10 different work cycles, thus resulting in increased productivity and simplified use
      • troubleshooting
    2. Modular power section, separated from the control panel and characterized by:
      • longer-lasting solid state relays providing easier maintenance
      • in case of failure, possibility of replacing just the damaged module, without losing the data stored in the memory
  • Reduced power consumption
  • Compliance with CE regulations
